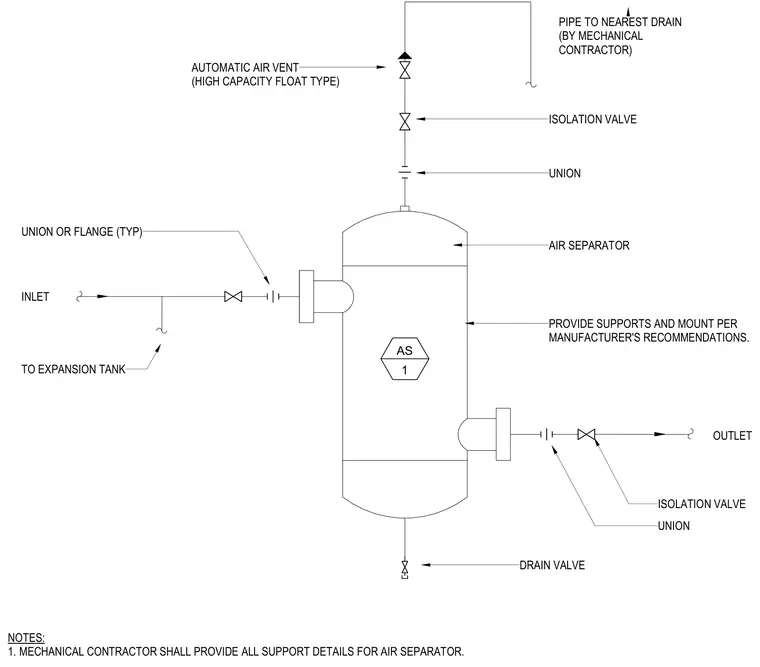

An inline dirt and air separator connects to system piping via typical union or flange fittings at the inlet and outlet ports. An automatic high-capacity float type air vent mounts at the top alongside an isolation valve and union, with a drain line routed to the nearest floor drain. A bottom drain valve connects below the vessel tank body, and piping ties into the expansion tank as indicated. The mechanical contractor provides all manufacturer-recommended supports and mounting details.
INLET OUTLET DRAIN VALVE PROVIDE SUPPORTS AND MOUNT PER MANUFACTURER'S RECOMMENDATIONS. AIR SEPARATOR PIPE TO NEAREST DRAIN (BY MECHANICAL CONTRACTOR) UNION OR FLANGE (TYP) AUTOMATIC AIR VENT (HIGH CAPACITY FLOAT TYPE) AS 1 ISOLATION VALVE TO EXPANSION TANK NOTES: 1. MECHANICAL CONTRACTOR SHALL PROVIDE ALL SUPPORT DETAILS FOR AIR SEPARATOR. UNION ISOLATION VALVE UNION
