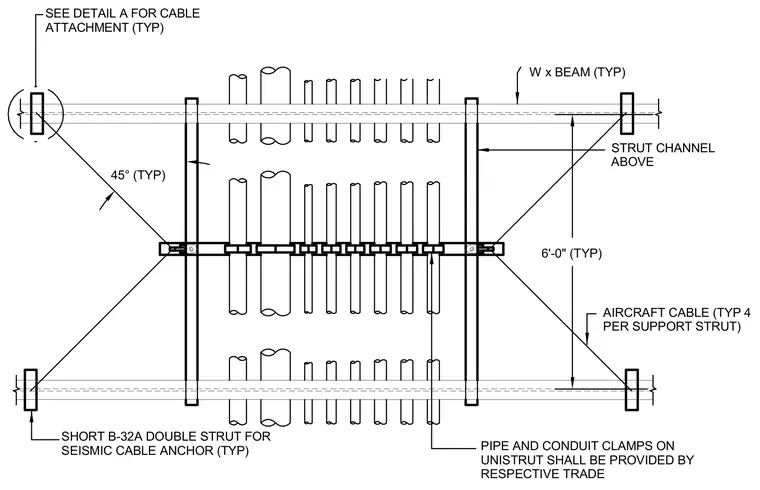

Short B-32A double strut channels span between structural wide-flange beams to support overhead pipe and conduit runs. Four aircraft cables attach diagonally at a forty-five degree angle to each support strut for seismic restraint, anchored back to the structure. Pipe and conduit clamps secure the services directly to the horizontal strut channel.
6'-0" (TYP) 45° (TYP) W x BEAM (TYP) SHORT B-32A DOUBLE STRUT FOR SEISMIC CABLE ANCHOR (TYP) SEE DETAIL A FOR CABLE ATTACHMENT (TYP) AIRCRAFT CABLE (TYP 4 PER SUPPORT STRUT) PIPE AND CONDUIT CLAMPS ON UNISTRUT SHALL BE PROVIDED BY RESPECTIVE TRADE STRUT CHANNEL ABOVE
