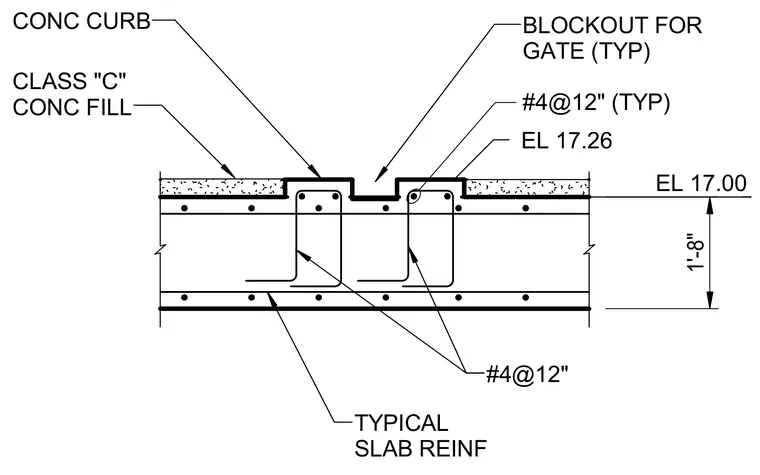

A reinforced concrete slab carries a concrete curb with a blockout for a gate, set at elevation 17.26 adjacent to class C concrete fill at elevation 17.00. The assembly is one foot eight inches thick and incorporates typical number four reinforcing bars spaced at twelve inches on center.
1'-8" EL 17.00 CONC CURB CLASS "C" CONC FILL BLOCKOUT FOR GATE (TYP) #4@12" (TYP) #4@12" TYPICAL SLAB REINF EL 17.26
