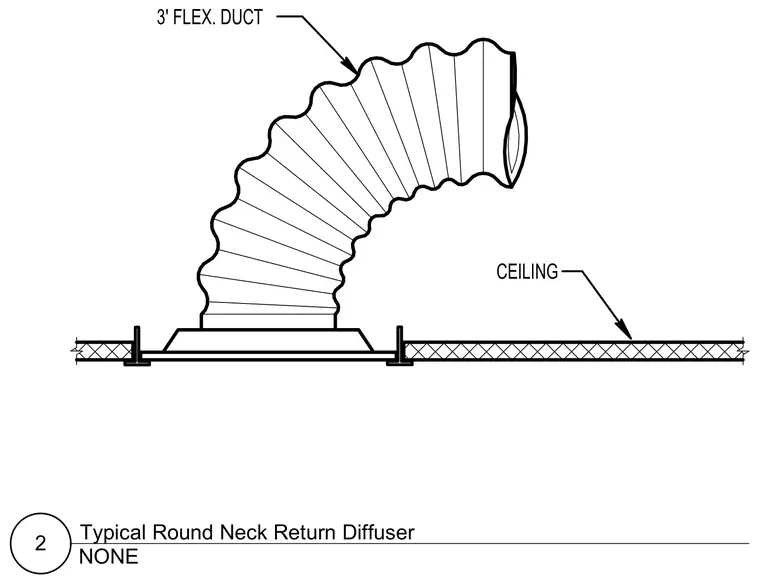

A round neck return diffuser connects to a three-foot flexible duct and is installed flush within a typical ceiling assembly.
CEILING 3' FLEX. DUCT NONE 2 Typical Round Neck Return Diffuser
