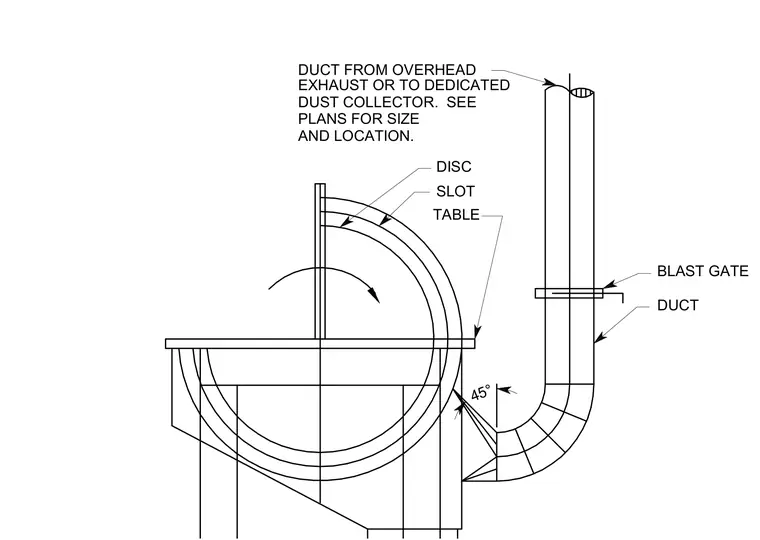

A grinder hood assembly connects to a vertical exhaust duct through a 45-degree transition elbow and a manually operated blast gate. The exhaust duct routes overhead to an exhaust system or dedicated dust collector, with sizing and location coordinated per the mechanical plans. The enclosure incorporates a table, a slot, and a rotating disc component to capture grinding debris.
BLAST GATE DUCT DUCT FROM OVERHEAD PLANS FOR SIZE AND LOCATION. TABLE DISC SLOT 45° EXHAUST OR TO DEDICATED DUST COLLECTOR. SEE
