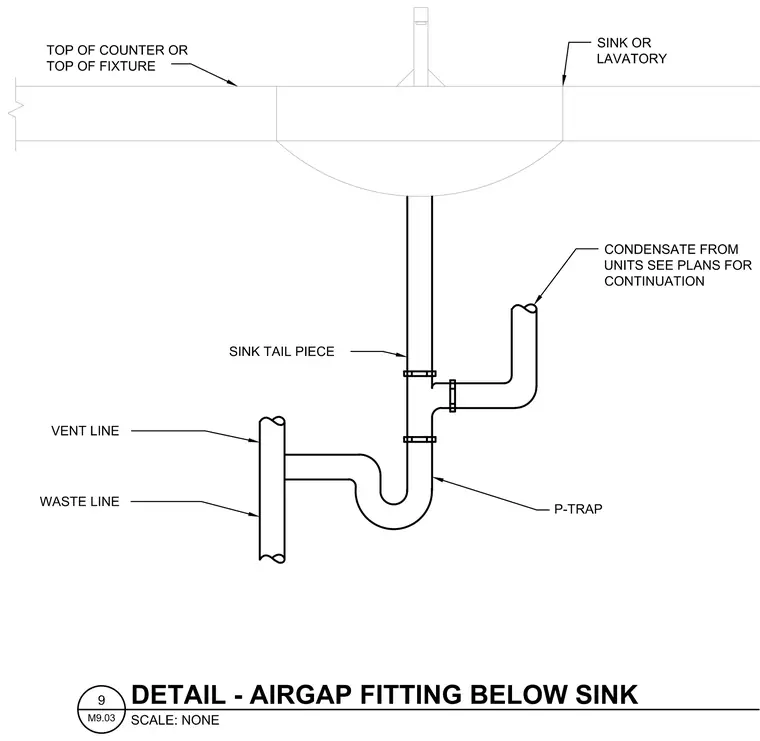

A sink or lavatory with the top of the counter or top of the fixture aligned above a sink tailpiece. The tailpiece extends downward into a P-trap connected to a waste line and a vent line. A condensate line from units ties into the tailpiece assembly above the trap, with continuation per plans.
