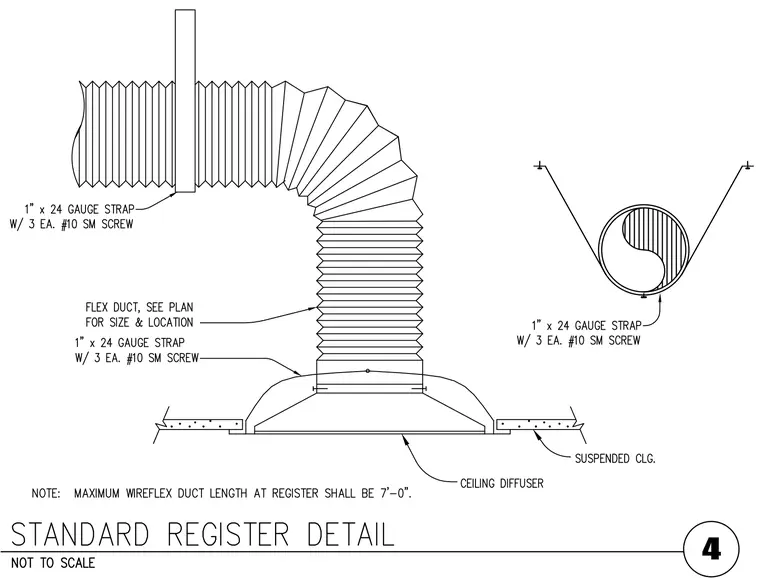

Flexible duct connects to a ceiling diffuser set within a suspended ceiling. The assembly is secured using one-inch by twenty-four gauge straps fastened with three each number ten sheet metal screws. A wireflex duct maximum length at the register is restricted to seven feet.
