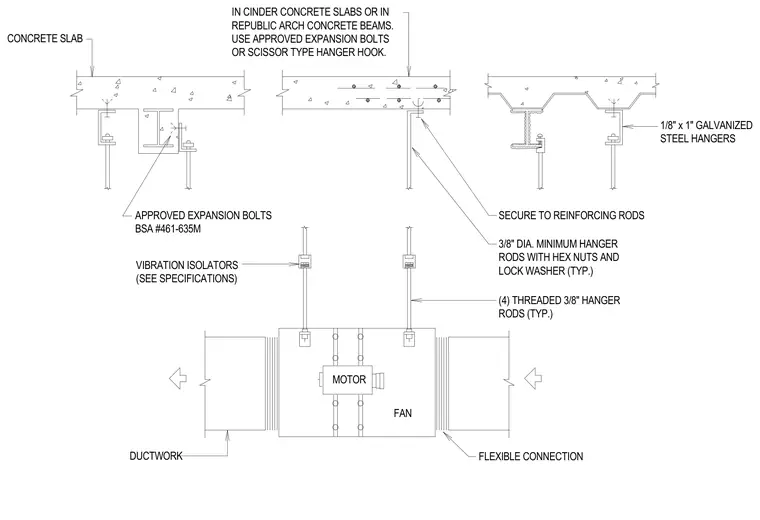

An inline fan is suspended below concrete slabs or Republic Arch concrete beams using four 3/8-inch diameter minimum threaded hanger rods secured with hex nuts and lock washers. The hangers anchor directly into the concrete slab using approved expansion bolts such as BSA #461-635M, or secure around reinforcing rods with 1/8-inch by 1-inch galvanized steel hangers or scissor-type hanger hooks. Fan vibration isolators are installed along the hanger rods per project specifications to reduce noise and movement transmission. Flexible connections link the inline fan housing to incoming and outgoing ductwork on both sides.
MOTOR DUCTWORK FLEXIBLE CONNECTION IN CINDER CONCRETE SLABS OR IN REPUBLIC ARCH CONCRETE BEAMS. USE APPROVED EXPANSION BOLTS OR SCISSOR TYPE HANGER HOOK. CONCRETE SLAB APPROVED EXPANSION BOLTS BSA #461-635M 1/8" x 1" GALVANIZED STEEL HANGERS 3/8" DIA. MINIMUM HANGER RODS WITH HEX NUTS AND LOCK WASHER (TYP.) SECURE TO REINFORCING RODS (4) THREADED 3/8" HANGER RODS (TYP.) FAN VIBRATION ISOLATORS (SEE SPECIFICATIONS)
