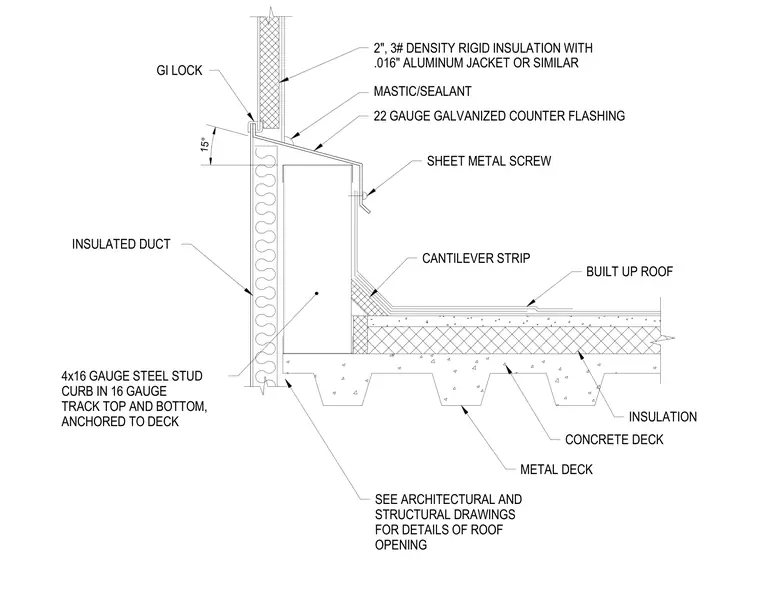

An insulated duct penetrates a roof assembly supported by a concrete fill on a metal deck. A steel stud curb, framed with 16-gauge steel tracks at the top and bottom and 4x16-gauge steel studs, is anchored directly to the roof deck. A cantilever strip is installed at the base of the curb beneath the built-up roof membrane. A 22-gauge galvanized counter-flashing slopes outward at 15 degrees, secured with sheet metal screws and sealed with mastic at the top joint. The vertical duct is wrapped with 2-inch, 3-pound density rigid insulation featuring an 0.016-inch aluminum jacket and secured with a galvanized iron lock.
15° BUILT UP ROOF CANTILEVER STRIP SHEET METAL SCREW INSULATION CONCRETE DECK METAL DECK SEE ARCHITECTURAL AND STRUCTURAL DRAWINGS FOR DETAILS OF ROOF OPENING INSULATED DUCT 22 GAUGE GALVANIZED COUNTER FLASHING MASTIC/SEALANT GI LOCK 2", 3# DENSITY RIGID INSULATION WITH .016" ALUMINUM JACKET OR SIMILAR 4x16 GAUGE STEEL STUD CURB IN 16 GAUGE TRACK TOP AND BOTTOM, ANCHORED TO DECK
