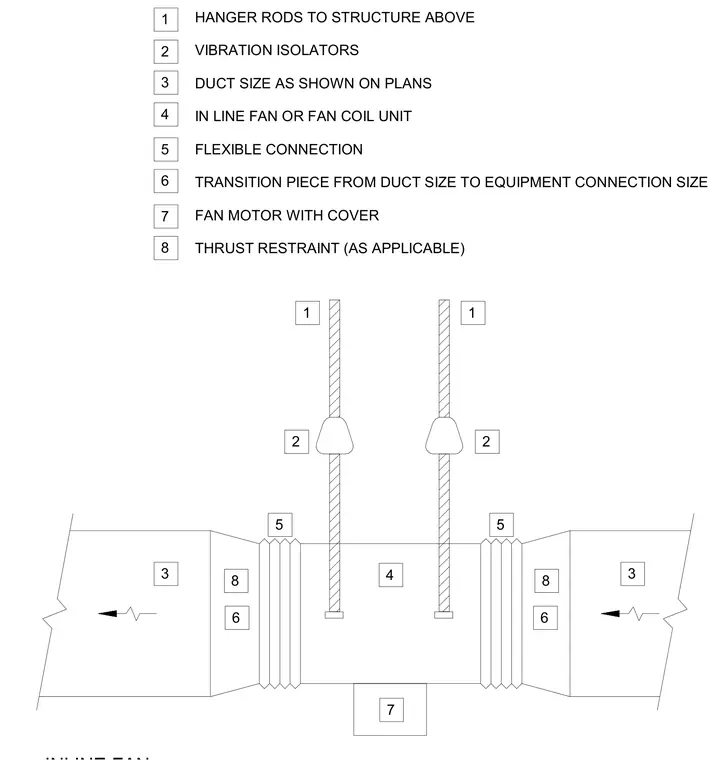

An inline fan or fan coil unit is suspended from the structure above using hanger rods fitted with vibration isolators. Flexible connections and transition pieces join the unit to the incoming and outgoing ductwork sized per plans. A fan motor with a cover is mounted to the underside of the equipment. Thrust restraints are included as applicable.
HANGER RODS TO STRUCTURE ABOVE VIBRATION ISOLATORS DUCT SIZE AS SHOWN ON PLANS IN LINE FAN OR FAN COIL UNIT FLEXIBLE CONNECTION TRANSITION PIECE FROM DUCT SIZE TO EQUIPMENT CONNECTION SIZE FAN MOTOR WITH COVER THRUST RESTRAINT (AS APPLICABLE) 1 2 3 4 5 6 7 8 1 1 2 2 3 3 5 5 8 8 7 4 6 6
