Mechanical · M-9MTHY

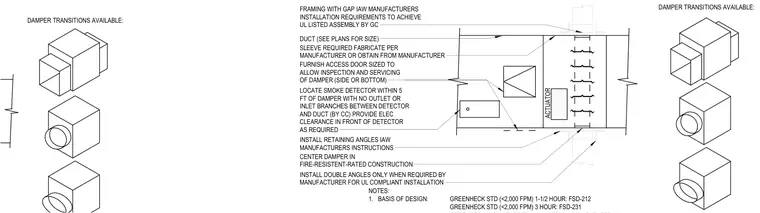

Static Fire Damper Vertical Detail

Materials

Elements

About this detail

A vertical static fire damper is installed within a fire-resistant-rated wall construction. A duct passes through a required sleeve centered in the partition, with framing maintained with a gap in accordance with manufacturer requirements to achieve a UL-listed assembly. Retaining angles are installed per manufacturer instructions, utilizing double angles only when required for UL compliance. An actuator operates the damper, and an access door is furnished on the side or bottom to allow inspection and servicing. A smoke detector is located within five feet of the damper with no outlet or inlet branches in between, and transition options are provided for various duct configurations.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
