A plate and frame heat exchanger is mounted to a concrete housekeeping pad by the general contractor, bolted through each base mounting hole with bolts sized to match the provided holes. The unit connects to system piping using reducers as required to match unit connection sizes. Each connection incorporates pressure and temperature taps, manual air vents, and sensor wells for controls. Shut-off valves are installed on typical piping runs, accompanied by control valves provided by the temperature control contractor. Drains with hose connections are provided on two lines for system maintenance.

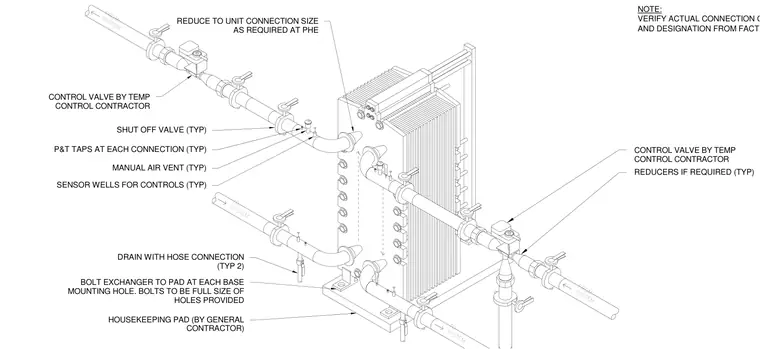

NOTE: VERIFY ACTUAL CONNECTION CONFIGURATION AND DESIGNATION FROM FACTORY SETTINGS. MANUAL AIR VENT (TYP) SHUT OFF VALVE (TYP) P&T TAPS AT EACH CONNECTION (TYP) DRAIN WITH HOSE CONNECTION (TYP 2) BOLT EXCHANGER TO PAD AT EACH BASE MOUNTING HOLE. BOLTS TO BE FULL SIZE OF HOLES PROVIDED HOUSEKEEPING PAD (BY GENERAL CONTRACTOR) FROM SYSTEM TO SYSTEM FROM SYSTEM TO SYSTEM SENSOR WELLS FOR CONTROLS (TYP) CONTROL VALVE BY TEMP CONTROL CONTRACTOR CONTROL VALVE BY TEMP CONTROL CONTRACTOR REDUCE TO UNIT CONNECTION SIZE AS REQUIRED AT PHE REDUCERS IF REQUIRED (TYP)
