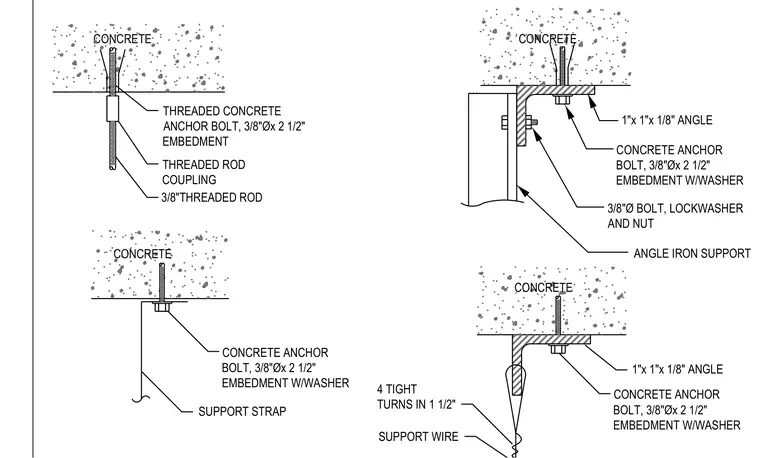

Suspended mechanical supports attach to overhead concrete ceilings using three-eighths-inch diameter threaded concrete anchor bolts with a two-and-a-half-inch embedment and washers. Threaded rod connections incorporate a three-eighths-inch threaded rod coupling joined to a three-eighths-inch threaded rod. Angle iron supports consist of one-inch by one-inch by one-eighth-inch angles secured by overhead anchors and connected to vertical drops using three-eighths-inch bolts with lockwashers and nuts. Support straps and support wires utilize looped attachments featuring four tight turns in one and one-half inches.
1"x 1"x 1/8" ANGLE ANGLE IRON SUPPORT CONCRETE CONCRETE 3/8"THREADED ROD CONCRETE 1"x 1"x 1/8" ANGLE THREADED CONCRETE ANCHOR BOLT, 3/8"Øx 2 1/2" EMBEDMENT THREADED ROD COUPLING CONCRETE ANCHOR BOLT, 3/8"Øx 2 1/2" EMBEDMENT W/WASHER 4 TIGHT TURNS IN 1 1/2" SUPPORT WIRE CONCRETE SUPPORT STRAP CONCRETE ANCHOR BOLT, 3/8"Øx 2 1/2" EMBEDMENT W/WASHER CONCRETE ANCHOR BOLT, 3/8"Øx 2 1/2" EMBEDMENT W/WASHER 3/8"Ø BOLT, LOCKWASHER AND NUT
