Seismic Equipment Anchorage with Resilient Pad

Materials

Steel Stainless Steel

Elements

Roofs Floors / Slabs Foundations / Footings Anchors / Embeds Connections / Plates

Connections

Base Plate / Anchorage Bolted Connection Embed Plate

About this detail

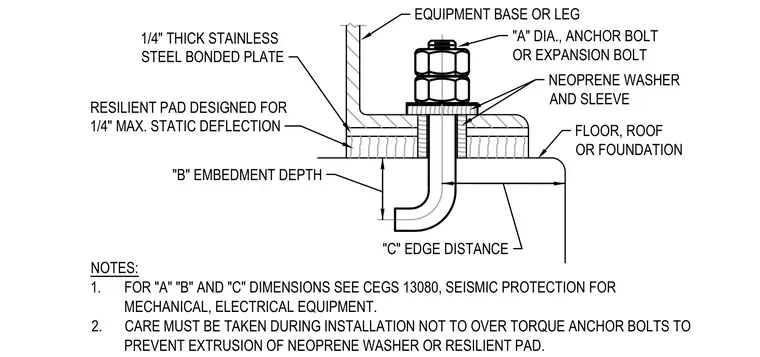

An equipment base or leg is anchored to a concrete floor, roof, or foundation using an anchor bolt or expansion bolt with a specified diameter "A", embedment depth "B", and edge distance "C". A neoprene washer and sleeve isolate the bolted connection from the equipment base, which rests on a one-quarter-inch thick stainless steel bonded plate and a resilient pad designed for one-quarter-inch maximum static deflection. Installation care must be taken to avoid over-torquing the anchor bolts to prevent the extrusion of the neoprene washer and resilient pad.
