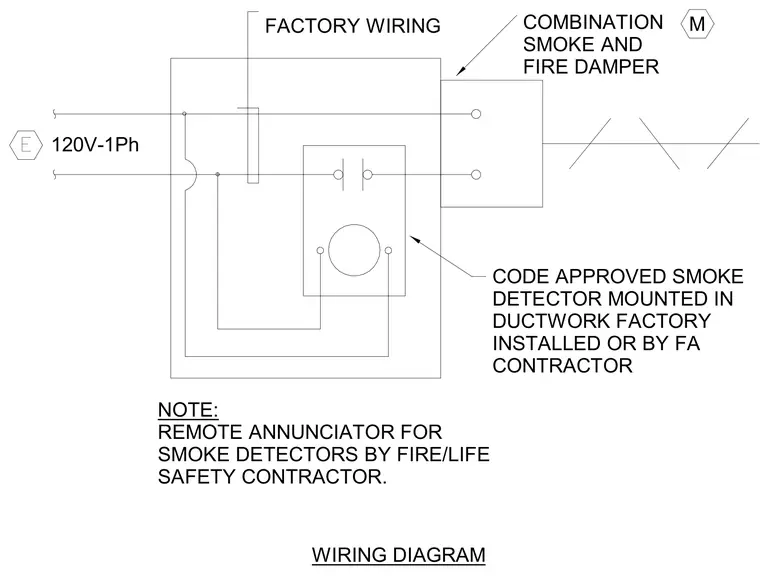

A combination smoke and fire damper connects to a 120V single-phase power supply through factory wiring. A code-approved smoke detector is mounted within the ductwork, either factory-installed or provided by the fire alarm contractor. A remote annunciator for the smoke detectors is supplied by the fire and life safety contractor.
M E COMBINATION SMOKE AND FIRE DAMPER CODE APPROVED SMOKE DETECTOR MOUNTED IN DUCTWORK FACTORY INSTALLED OR BY FA CONTRACTOR FACTORY WIRING 120V-1Ph NOTE: REMOTE ANNUNCIATOR FOR SMOKE DETECTORS BY FIRE/LIFE SAFETY CONTRACTOR. WIRING DIAGRAM
