Suspended insulated piping is supported by adjustable clevis hangers with type 1 and type 43 configurations. One-half-inch diameter hanger rods spaced at a maximum of thirty-six inches attach to either a one-and-five-eighths-inch twelve-gauge channel or a two-by-two-by-one-quarter-inch angle. An insulation shield and insert are provided for all piping eight inches minimum with typical bands and saddle connections. Hanger rods suspend the assembly with typical insulation applied per specifications.

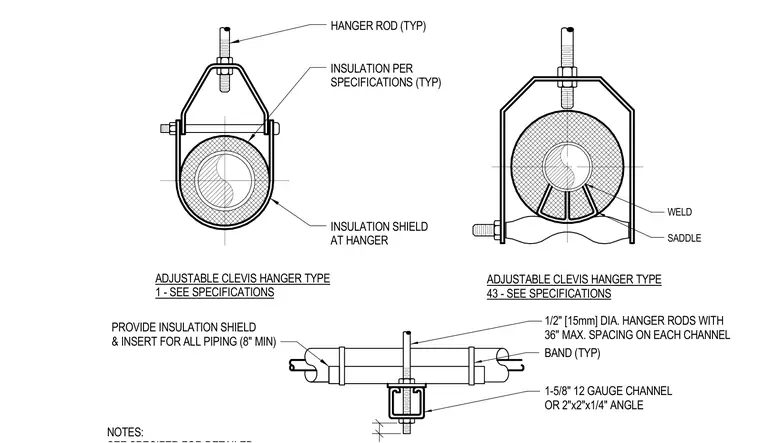

PROVIDE INSULATION SHIELD & INSERT FOR ALL PIPING (8" MIN) BAND (TYP) 1-5/8" 12 GAUGE CHANNEL OR 2"x2"x1/4" ANGLE 1/2" [15mm] DIA. HANGER RODS WITH 36" MAX. SPACING ON EACH CHANNEL INSULATION SHIELD AT HANGER INSULATION PER SPECIFICATIONS (TYP) HANGER ROD (TYP) NOTES: ADJUSTABLE CLEVIS HANGER TYPE 1 - SEE SPECIFICATIONS ADJUSTABLE CLEVIS HANGER TYPE 43 - SEE SPECIFICATIONS WELD SADDLE
