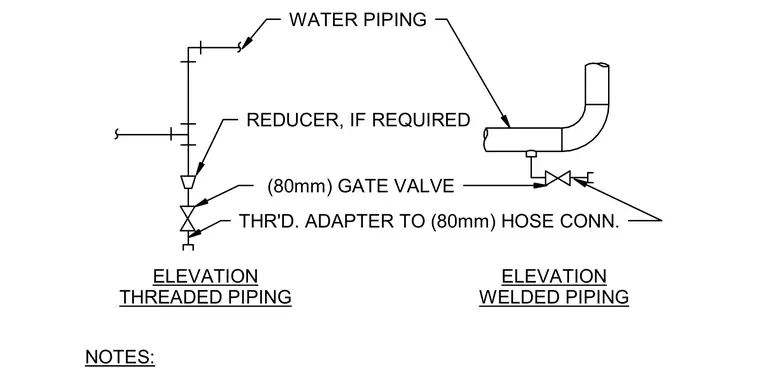

The threaded piping elevation features water piping dropping down through a reducer, if required, connected to an 80 millimeter gate valve and terminating at a threaded adapter to an 80 millimeter hose connection. The welded piping elevation shows water piping with a welded elbow and a branch connection leading to an 80 millimeter gate valve and hose connection.
NOTES: ELEVATION THREADED PIPING ELEVATION WELDED PIPING THR'D. ADAPTER TO (80mm) HOSE CONN. (80mm) GATE VALVE REDUCER, IF REQUIRED WATER PIPING
