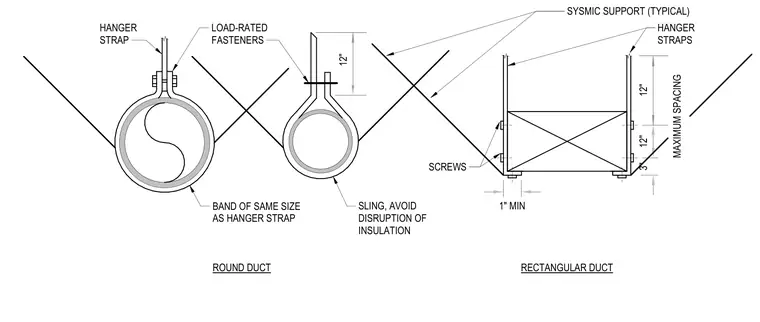

Round and rectangular HVAC ducts are suspended using load-rated hanger straps and bands of the same size to avoid disruption of duct insulation. Round ducts utilize slings secured with load-rated fasteners, while rectangular ducts are supported by straps fastened with screws and maintaining a one-inch minimum clearance. Typical seismic support bracing is provided at angled intervals across the suspension system.
HANGER STRAPS MAXIMUM SPACING SCREWS SLING, AVOID DISRUPTION OF INSULATION BAND OF SAME SIZE AS HANGER STRAP HANGER STRAP LOAD-RATED FASTENERS 12" 12" 3" 1" MIN 12" ROUND DUCT RECTANGULAR DUCT SYSMIC SUPPORT (TYPICAL)
