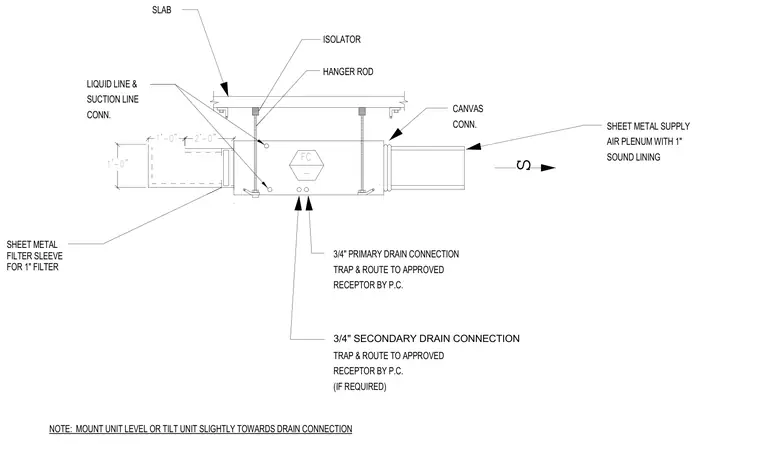

Suspended fan coil unit anchored below a concrete slab using hanger rods and isolators. A sheet metal supply air plenum with sound lining connects via a canvas connection to the unit. The unit features a sheet metal filter sleeve for a 1-inch filter, liquid and suction line connections, and three-quarter-inch primary and secondary drain connections. Condensate drains require a trap and routing to an approved receptor by the plumbing contractor. The unit must be mounted level or tilted slightly towards the drain connection.
S 2'-0" 1'-0" 1'-0" FC - HANGER ROD ISOLATOR CANVAS CONN. SOUND LINING AIR PLENUM WITH 1" SHEET METAL SUPPLY CONN. SUCTION LINE LIQUID LINE & NOTE: MOUNT UNIT LEVEL OR TILT UNIT SLIGHTLY TOWARDS DRAIN CONNECTION TRAP & ROUTE TO APPROVED RECEPTOR BY P.C. RECEPTOR BY P.C. TRAP & ROUTE TO APPROVED 3/4" PRIMARY DRAIN CONNECTION (IF REQUIRED) SLAB 3/4" SECONDARY DRAIN CONNECTION SHEET METAL FILTER SLEEVE FOR 1" FILTER
