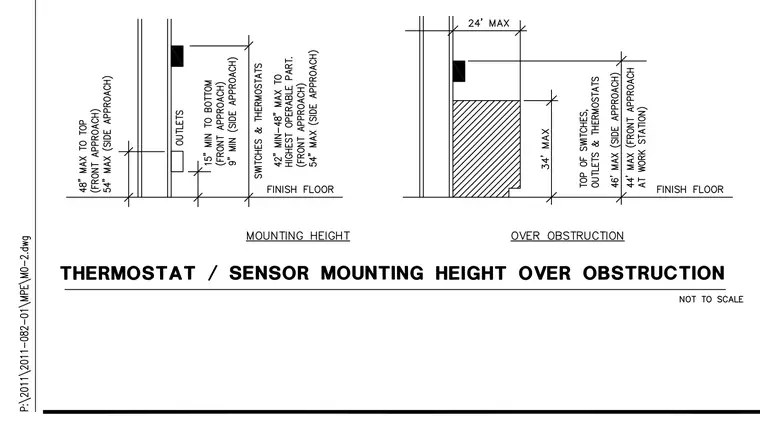

Standard mounting heights for electrical devices are dimensioned relative to the finish floor for both standard conditions and installations over obstructions. Outlets, switches, and thermostats require specific vertical clearances to satisfy accessibility guidelines for front and side approaches. Dimensions specify maximum and minimum heights to the top, bottom, and highest operable parts of the devices. Installations over obstructions limit reach ranges and maximum heights based on approach type and workstation configurations.
