Mechanical · M-9564C

Z-Duct Return Transfer Duct Acoustic Detail

Materials

Elements

Walls Partitions Ceilings Floors / Slabs Decks Insulation Roof / Floor Openings

About this detail

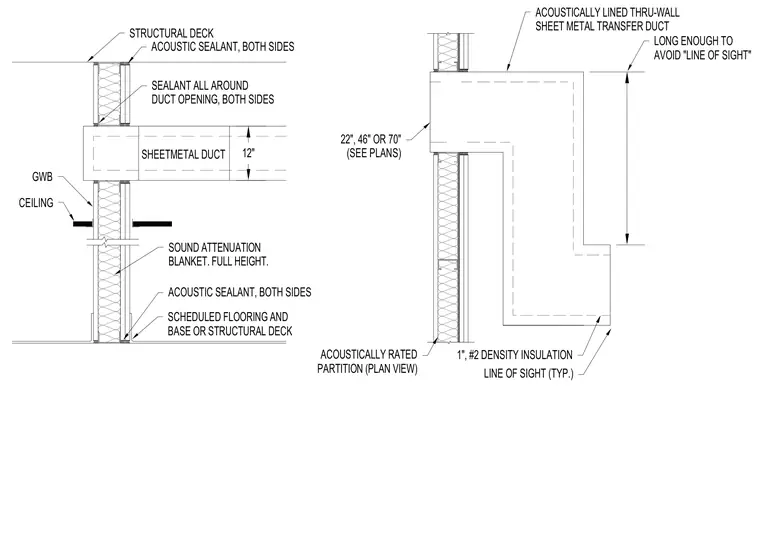

An acoustically lined thru-wall sheet metal transfer duct penetrates an acoustically rated partition with dimensions of 22 inches, 46 inches, or 70 inches as sized per plans. The duct features a 1-inch, number-two density insulation lining and is configured with an offset length to avoid line of sight. Acoustic sealant is applied on both sides around the structural deck and the duct opening. The surrounding partition consists of a gypsum wallboard ceiling, scheduled flooring and base, and a full-height sound attenuation blanket.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
