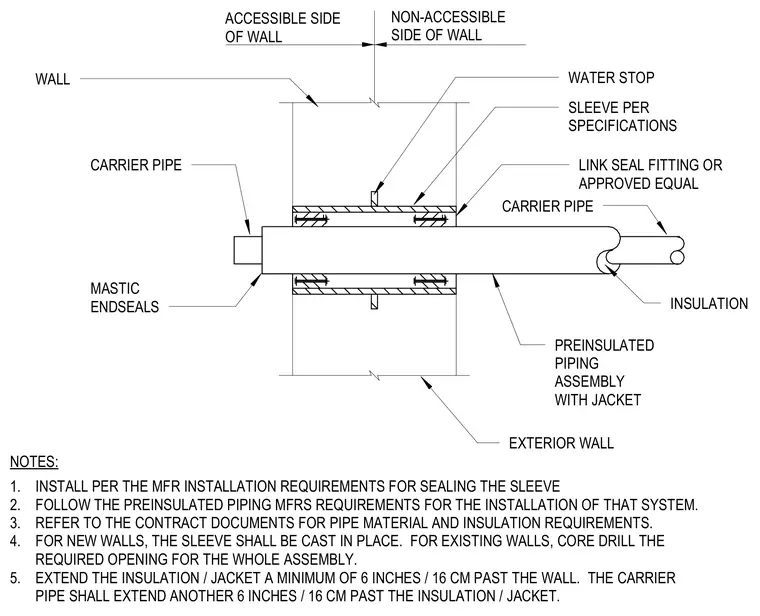

A preinsulated piping assembly with a protective jacket passes through an exterior concrete wall via a wall sleeve. A water stop is positioned on the non-accessible side of the wall, while link seal fittings or approved equals secure the annular space between the carrier pipe assembly and the sleeve. Mastic end seals protect the insulation ends, with the insulation and jacket extending a minimum of 6 inches past the wall face and the bare carrier pipe extending an additional 6 inches beyond the insulation. For new construction the sleeve is cast in place, whereas existing walls require a core-drilled opening sized for the assembly. Installation must follow the manufacturer requirements for sealing the sleeve and installing the preinsulated piping system.
WATER STOP NON-ACCESSIBLE SIDE OF WALL ACCESSIBLE SIDE OF WALL CARRIER PIPE PREINSULATED PIPING ASSEMBLY WITH JACKET LINK SEAL FITTING OR APPROVED EQUAL INSULATION WALL SLEEVE PER SPECIFICATIONS EXTERIOR WALL NOTES: INSTALL PER THE MFR INSTALLATION REQUIREMENTS FOR SEALING THE SLEEVE FOLLOW THE PREINSULATED PIPING MFRS REQUIREMENTS FOR THE INSTALLATION OF THAT SYSTEM. REFER TO THE CONTRACT DOCUMENTS FOR PIPE MATERIAL AND INSULATION REQUIREMENTS. FOR NEW WALLS, THE SLEEVE SHALL BE CAST IN PLACE. FOR EXISTING WALLS, CORE DRILL THE REQUIRED OPENING FOR THE WHOLE ASSEMBLY. EXTEND THE INSULATION / JACKET A MINIMUM OF 6 INCHES / 16 CM PAST THE WALL. THE CARRIER PIPE SHALL EXTEND ANOTHER 6 INCHES / 16 CM PAST THE INSULATION / JACKET. 1. 2. 3. 4. 5. CARRIER PIPE MASTIC ENDSEALS
