The rooftop pipe support assembly consists of a UV-resistant rubber base placed directly on the roofing material with drainage holes provided in the channel and base. An integral galvanized steel strut channel sits atop the base to hold the pipe per plans. A rigid insert is included if the pipe is insulated, secured tightly with a galvanized steel strap compatible with the strut channel. Material under the support is provided only if required by the roofing manufacturer.

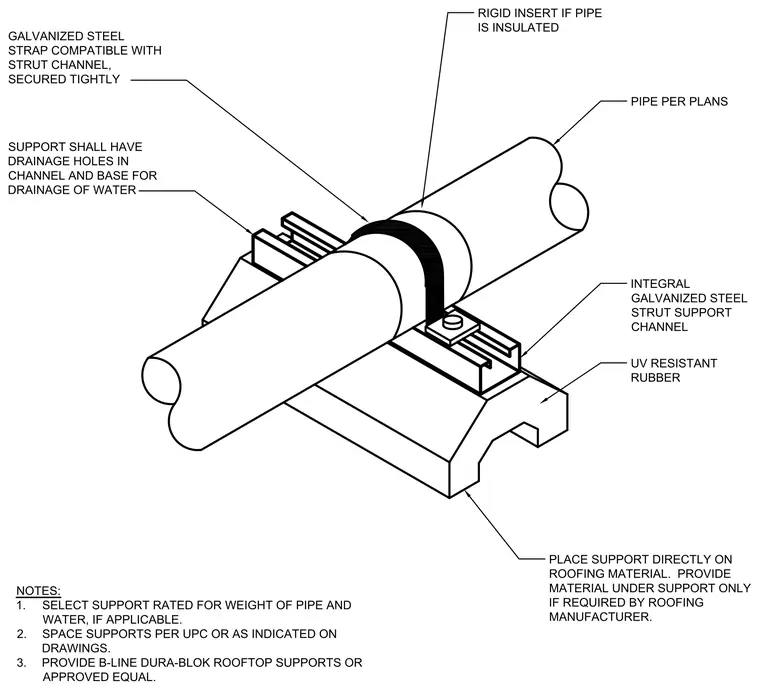

NOTES: 1. SELECT SUPPORT RATED FOR WEIGHT OF PIPE AND WATER, IF APPLICABLE. 2. SPACE SUPPORTS PER UPC OR AS INDICATED ON DRAWINGS. 3. PROVIDE B-LINE DURA-BLOK ROOFTOP SUPPORTS OR APPROVED EQUAL. UV RESISTANT RUBBER INTEGRAL GALVANIZED STEEL STRUT SUPPORT CHANNEL PLACE SUPPORT DIRECTLY ON ROOFING MATERIAL. PROVIDE MATERIAL UNDER SUPPORT ONLY IF REQUIRED BY ROOFING MANUFACTURER. PIPE PER PLANS SUPPORT SHALL HAVE DRAINAGE HOLES IN CHANNEL AND BASE FOR DRAINAGE OF WATER GALVANIZED STEEL STRAP COMPATIBLE WITH STRUT CHANNEL, SECURED TIGHTLY RIGID INSERT IF PIPE IS INSULATED
