Two Coils Piping Connection Detail

Elements

About this detail

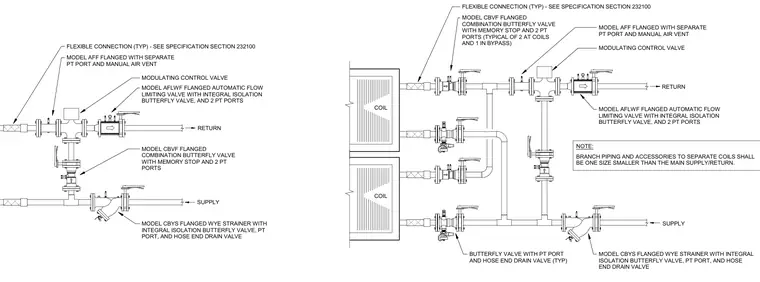

Supply and return piping connections for two coils incorporating flexible connections per specification section 232100. The piping assembly features model CBYS flanged wye strainers with integral isolation butterfly valves, PT ports, and hose end drain valves on the supply lines. Modulating control valves, model AFLWF flanged automatic flow limiting valves with integral isolation butterfly valves and two PT ports, and model AFF flanged valves with separate PT ports and manual air vents are included. Model CBVF flanged combination butterfly valves with memory stops and two PT ports are integrated at the coils and bypass. Branch piping and accessories to separate coils are specified to be one size smaller than the main supply and return.
