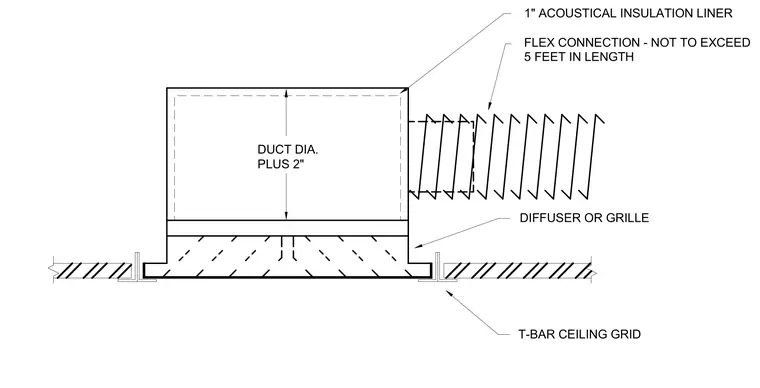

An air diffuser or grille integrates directly into a T-bar ceiling grid and connects to a flexible duct. The interior of the neck is lined with a one-inch acoustical insulation liner, and the flexible connection is restricted to a maximum length of five feet. The duct diameter is sized to the diffuser or grille diameter plus two inches.
5 FEET IN LENGTH 1" ACOUSTICAL INSULATION LINER FLEX CONNECTION - NOT TO EXCEED DIFFUSER OR GRILLE DUCT DIA. PLUS 2" T-BAR CEILING GRID
