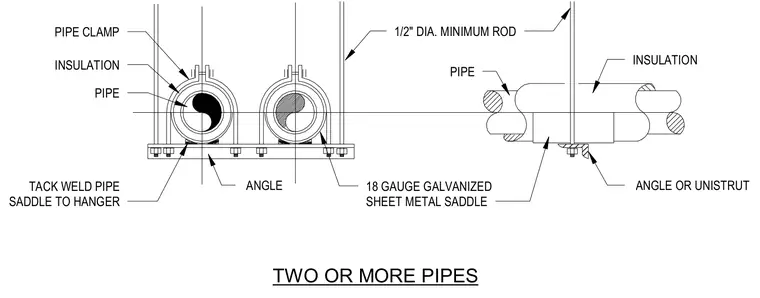

Insulated pipes rest upon an eighteen gauge galvanized sheet metal saddle tack-welded to the hanger, supported by an angle or Unistrut member spanning across multiple lines. Pipe clamps secure the insulated pipes directly to the support assembly. The trapeze support configuration hangs from threaded rods with a one-half inch minimum diameter.
TACK WELD PIPE SADDLE TO HANGER PIPE CLAMP INSULATION PIPE TWO OR MORE PIPES 18 GAUGE GALVANIZED SHEET METAL SADDLE ANGLE 1/2" DIA. MINIMUM ROD PIPE ANGLE OR UNISTRUT INSULATION
