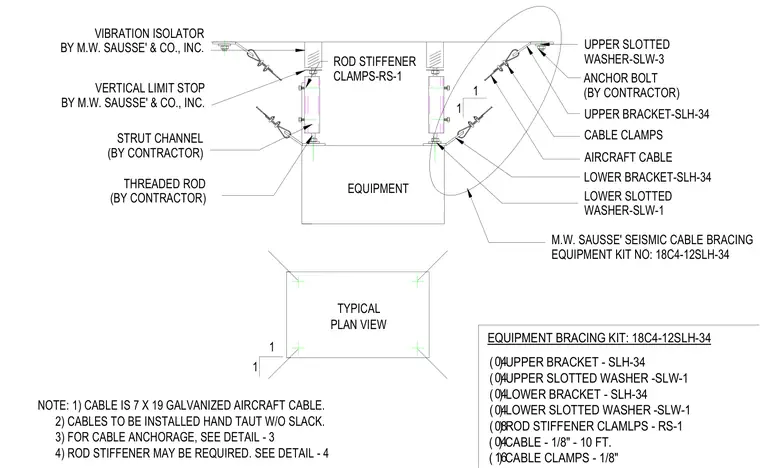

Suspended mechanical equipment is stabilized using a seismic cable bracing assembly kit connected to structural supports. The assembly incorporates 1/8-inch 7x19 galvanized aircraft cables secured with cable clamps, installed hand taut without slack. Upper and lower brackets are attached using slotted washers and anchor bolts or threaded rods provided by the contractor. Rod stiffener clamps and vertical limit stops by M.W. Sausse and Company are included where required for vibration-isolated equipment installations.
( ) CABLE - 1/8" - 10 FT. ( ) CABLE CLAMPS - 1/8" 04 16 ( ) UPPER SLOTTED WASHER -SLW-1 ( ) LOWER SLOTTED WASHER -SLW-1 ( ) UPPER BRACKET - SLH-34 ( ) LOWER BRACKET - SLH-34 M.W. SAUSSE' SEISMIC CABLE BRACING EQUIPMENT KIT NO: 18C4-12SLH-34 EQUIPMENT BRACING KIT: 18C4-12SLH-34 ( ) ROD STIFFENER CLAMLPS - RS-1 04 04 04 04 08 NOTE: 1) CABLE IS 7 X 19 GALVANIZED AIRCRAFT CABLE. 4) ROD STIFFENER MAY BE REQUIRED. SEE DETAIL - 4 3) FOR CABLE ANCHORAGE, SEE DETAIL - 3 2) CABLES TO BE INSTALLED HAND TAUT W/O SLACK. THREADED ROD (BY CONTRACTOR) EQUIPMENT 1 1 PLAN VIEW TYPICAL VERTICAL LIMIT STOP BY M.W. SAUSSE' & CO., INC. VIBRATION ISOLATOR BY M.W. SAUSSE' & CO., INC. STRUT CHANNEL (BY CONTRACTOR) ROD STIFFENER CLAMPS-RS-1 LOWER SLOTTED WASHER-SLW-1 CABLE CLAMPS AIRCRAFT CABLE UPPER BRACKET-SLH-34 ANCHOR BOLT (BY CONTRACTOR) LOWER BRACKET-SLH-34 UPPER SLOTTED WASHER-SLW-3 1 1
