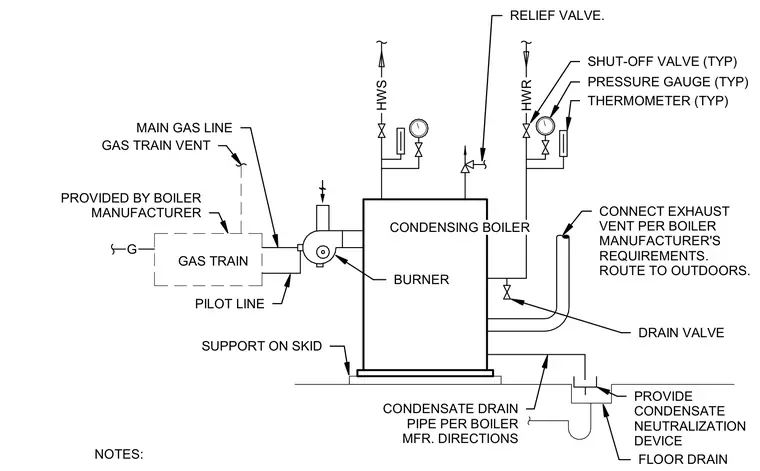

Hot water condensing boiler piping connections include a hot water supply line fitted with a typical thermometer, pressure gauge, and shut-off valve. A hot water return line includes similar instrumentation with a dedicated support on a skid. A relief valve mounts to the top of the boiler unit, while the exhaust vent routes outdoors according to manufacturer requirements. The gas train connects to the burner via a main gas line and pilot line, with a gas train vent provided by the manufacturer. A condensate drain line routes from the boiler to a floor drain via a condensate neutralization device.
HWR SUPPORT ON SKID HWS CONDENSATE DRAIN PIPE PER BOILER MFR. DIRECTIONS NOTES: CONDENSING BOILER FLOOR DRAIN PROVIDE CONDENSATE NEUTRALIZATION DEVICE THERMOMETER (TYP) PRESSURE GAUGE (TYP) SHUT-OFF VALVE (TYP) RELIEF VALVE. CONNECT EXHAUST VENT PER BOILER MANUFACTURER'S REQUIREMENTS. ROUTE TO OUTDOORS. DRAIN VALVE G PROVIDED BY BOILER MANUFACTURER MAIN GAS LINE GAS TRAIN VENT PILOT LINE BURNER GAS TRAIN
