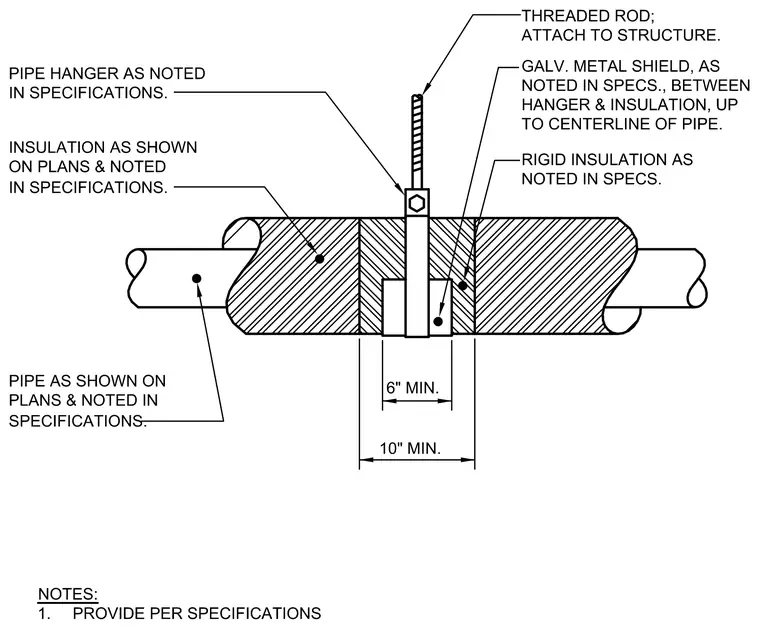

An insulated pipe is suspended from the structure by a threaded rod attached to a pipe hanger. A galvanized metal shield is positioned between the hanger and the pipe insulation, extending up to the centerline of the pipe. Rigid insulation fills the hanger space with a minimum six-inch dimension, flanked by pipe insulation spanning a minimum ten-inch overall protected width. All components are provided per specifications.
