Air Handling Unit AHU-200 Dimensions and Components

About this detail

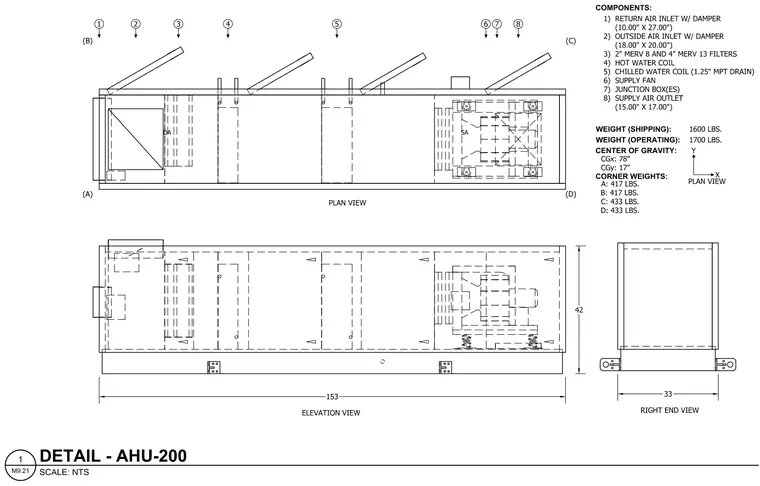

Air Handling Unit AHU-200 includes a return air inlet with a ten by twenty-seven inch damper, an outside air inlet with an eighteen by twenty inch damper, two-inch MERV 8 and four-inch MERV 13 filters, a hot water coil, and a chilled water coil with a 1.25-inch male pipe thread drain. The unit is equipped with a supply fan, junction boxes, and a fifteen by seventeen inch supply air outlet. Total shipping weight is 1,600 pounds, operating weight is 1,700 pounds, and corner weights are 417 pounds at points A and B and 433 pounds at points C and D. Overall dimensions measure 153 inches long by 33 inches wide by 42 inches high, with the center of gravity located at 78 inches on the X-axis and 17 inches on the Y-axis.
