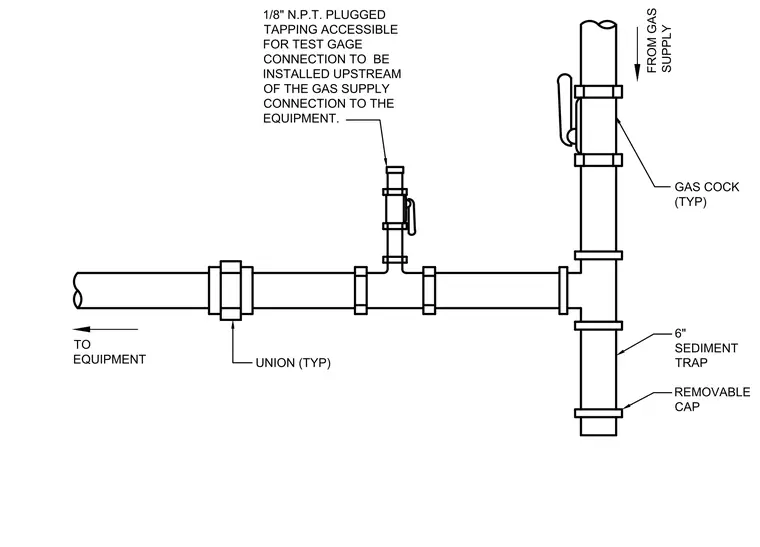

This piping assembly connects a natural gas supply line to mechanical equipment. A typical gas cock serves as the main shutoff valve upstream of a tee fitting, which drops into a six-inch sediment trap fitted with a removable cap at its base. The run includes typical unions for ease of maintenance and disassembly. An eighth-inch National Pipe Thread plugged tapping is provided upstream of the equipment connection to allow for pressure testing with a gauge.
TO EQUIPMENT FROM GAS SUPPLY 1/8" N.P.T. PLUGGED TAPPING ACCESSIBLE FOR TEST GAGE CONNECTION TO BE INSTALLED UPSTREAM OF THE GAS SUPPLY CONNECTION TO THE EQUIPMENT. UNION (TYP) GAS COCK (TYP) 6" SEDIMENT TRAP REMOVABLE CAP
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
