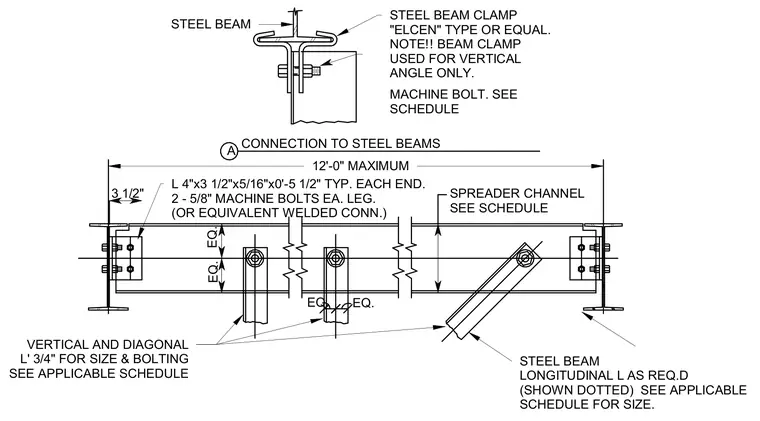

Mechanical support framing attaches to overhead steel beams using Elcen-type beam clamps and machine bolts at vertical angles. Spreader channels span up to twelve feet with vertical and diagonal angles secured by five-eighths-inch machine bolts or equivalent welded connections. Longitudinal angles are sized per the applicable schedule and installed as required.
STEEL BEAM STEEL BEAM CLAMP "ELCEN" TYPE OR EQUAL. NOTE!! BEAM CLAMP USED FOR VERTICAL ANGLE ONLY. MACHINE BOLT. SEE SCHEDULE SPREADER CHANNEL SEE SCHEDULE EQ. EQ. 3 1/2" L 4"x3 1/2"x5/16"x0'-5 1/2" TYP. EACH END. 2 - 5/8" MACHINE BOLTS EA. LEG. (OR EQUIVALENT WELDED CONN.) 12'-0" MAXIMUM VERTICAL AND DIAGONAL L' 3/4" FOR SIZE & BOLTING SEE APPLICABLE SCHEDULE EQ. EQ. STEEL BEAM LONGITUDINAL L AS REQ.D (SHOWN DOTTED) SEE APPLICABLE SCHEDULE FOR SIZE. CONNECTION TO STEEL BEAMS A
