A horizontal HVAC unit is suspended from the overhead structure using spring vibration isolators and threaded rods. Coil connections and condensate drain connections are routed per mechanical and plumbing drawings. An auxiliary drain pan is positioned beneath the unit and independently supported from the structure.

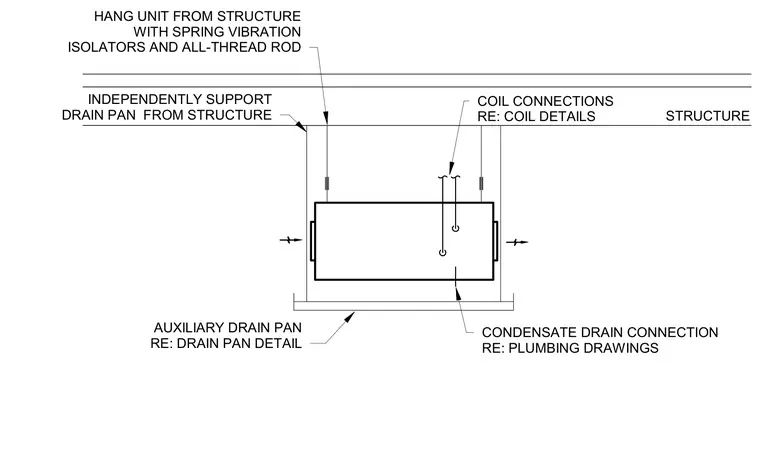

STRUCTURE HANG UNIT FROM STRUCTURE WITH SPRING VIBRATION ISOLATORS AND ALL-THREAD ROD CONDENSATE DRAIN CONNECTION RE: PLUMBING DRAWINGS COIL CONNECTIONS RE: COIL DETAILS AUXILIARY DRAIN PAN RE: DRAIN PAN DETAIL INDEPENDENTLY SUPPORT DRAIN PAN FROM STRUCTURE
