Mechanical · M-85EY5

Ceiling Diffuser and Flexible Duct Connection Detail

Materials

Elements

Ceilings Floors / Slabs Insulation Connections / Plates

About this detail

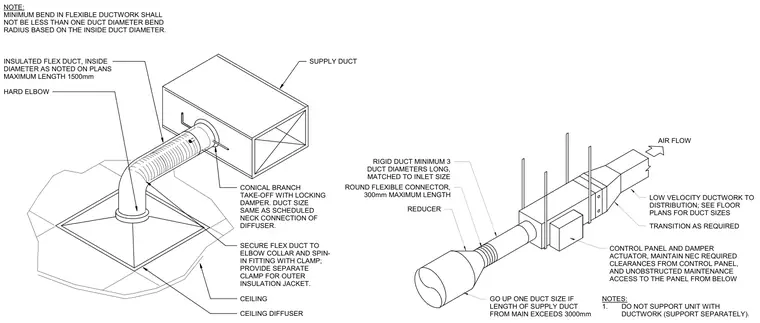

An insulated flexible duct connects the supply duct to a ceiling diffuser through a hard elbow and a conical branch take-off equipped with a locking damper. The flexible duct must be secured to the elbow collar and spin-in fitting using clamps, with a separate clamp provided for the outer insulation jacket, and its bend radius must not be less than one duct diameter. A maximum length of 1500mm applies to the flexible run, while runs exceeding 3000mm from the main require stepping up one duct size. A separate diagram shows a rigid duct connection featuring a reducer, a round flexible connector of maximum 300mm length, and a control panel with a damper actuator requiring unobstructed maintenance access and National Electrical Code clearances from below. Units must be supported independently rather than hung directly from the ductwork.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
