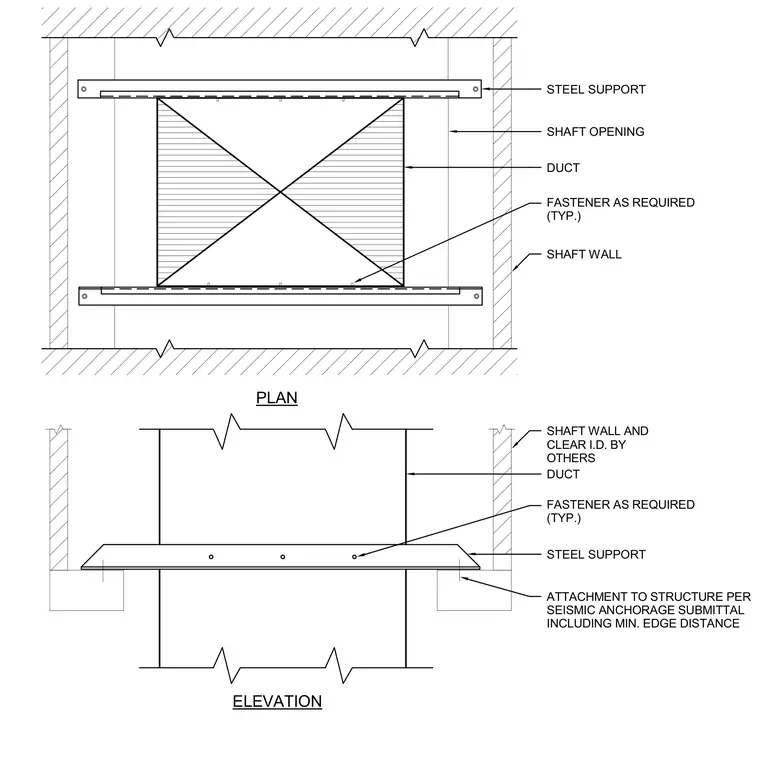

A rectangular duct passes through a shaft wall opening and is supported by steel supports anchored to the structure. Fasteners are installed as required with attachments meeting seismic anchorage submittal requirements including minimum edge distances. The shaft wall and clear inside dimensions are provided by others.
FASTENER AS REQUIRED (TYP.) DUCT STEEL SUPPORT ATTACHMENT TO STRUCTURE PER SEISMIC ANCHORAGE SUBMITTAL INCLUDING MIN. EDGE DISTANCE SHAFT WALL AND CLEAR I.D. BY OTHERS SHAFT WALL SHAFT OPENING FASTENER AS REQUIRED (TYP.) DUCT STEEL SUPPORT ELEVATION PLAN
