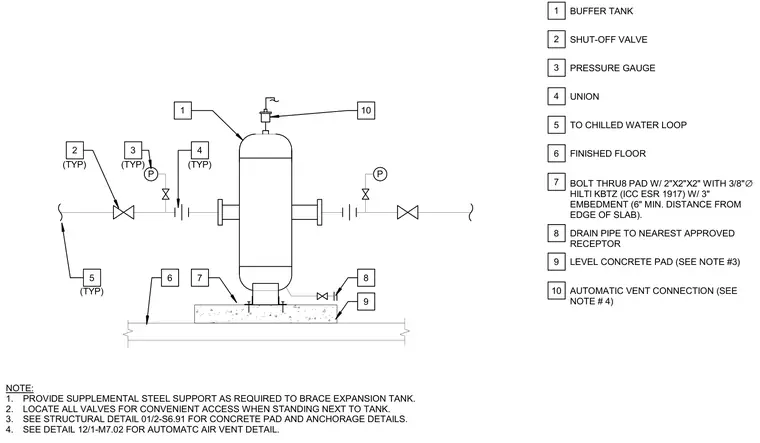

A vertical buffer tank is mounted on a level concrete pad over the finished floor and secured with 3/8-inch diameter Hilti KBTZ expansion anchors with 3-inch embedment. The chilled water loop connects to the tank via piping that includes typical shut-off valves, pressure gauges, and unions. An automatic air vent connection is provided at the top of the tank, and a drain pipe leads to the nearest approved receptor at the base. Supplemental steel support should be provided as required to brace the tank, and all valves must be located for convenient access.
PRESSURE GAUGE LEVEL CONCRETE PAD (SEE NOTE #3) NOTE: 1. PROVIDE SUPPLEMENTAL STEEL SUPPORT AS REQUIRED TO BRACE EXPANSION TANK. 2. LOCATE ALL VALVES FOR CONVENIENT ACCESS WHEN STANDING NEXT TO TANK. 3. SEE STRUCTURAL DETAIL 01/2-S6.91 FOR CONCRETE PAD AND ANCHORAGE DETAILS. 4. SEE DETAIL 12/1-M7.02 FOR AUTOMATC AIR VENT DETAIL. 1 2 3 4 5 6 7 8 9 P P 1 2 3 4 7 8 9 6 (TYP) (TYP) (TYP) 5 (TYP) BUFFER TANK SHUT-OFF VALVE UNION TO CHILLED WATER LOOP FINISHED FLOOR BOLT THRU8 PAD W/ 2"X2"X2" WITH 3/8" ∅ HILTI KBTZ (ICC ESR 1917) W/ 3" EMBEDMENT (6" MIN. DISTANCE FROM EDGE OF SLAB). DRAIN PIPE TO NEAREST APPROVED RECEPTOR 10 AUTOMATIC VENT CONNECTION (SEE NOTE # 4) 10
