A rooftop air conditioning unit is secured to a sloping roof curb using a six-inch sixteen-gauge hold-down clip furnished by the unit manufacturer. The clip is fastened to the unit and curb with a minimum of twelve number-ten by one-half-inch self-tapping screws per clip. A sixteen-gauge stiffener is installed as required by the unit manufacturer. A minimum twenty-inch clearance is maintained from the roof surface.

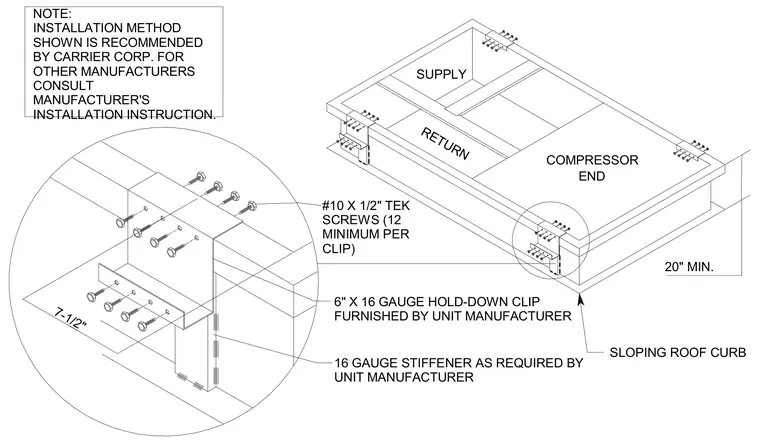

7-1/2" RETURN SUPPLY COMPRESSOR END 20" MIN. SLOPING ROOF CURB NOTE: INSTALLATION METHOD SHOWN IS RECOMMENDED BY CARRIER CORP. FOR OTHER MANUFACTURERS CONSULT MANUFACTURER'S INSTALLATION INSTRUCTION. 16 GAUGE STIFFENER AS REQUIRED BY UNIT MANUFACTURER 6" X 16 GAUGE HOLD-DOWN CLIP FURNISHED BY UNIT MANUFACTURER #10 X 1/2" TEK SCREWS (12 MINIMUM PER CLIP)
