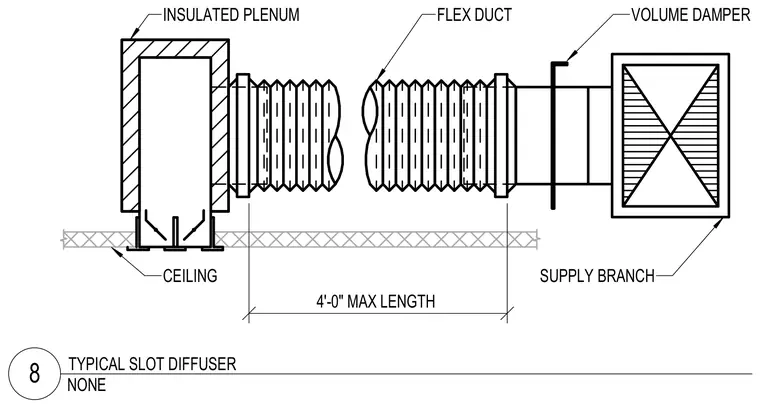

An insulated plenum connects to a supply branch through a flexible duct fitted with a volume damper. The flexible duct has a maximum length of four feet. A slot diffuser integrates into the ceiling plane below the insulated plenum.
INSULATED PLENUM FLEX DUCT VOLUME DAMPER SUPPLY BRANCH CEILING 4'-0" MAX LENGTH NONE 8 TYPICAL SLOT DIFFUSER
