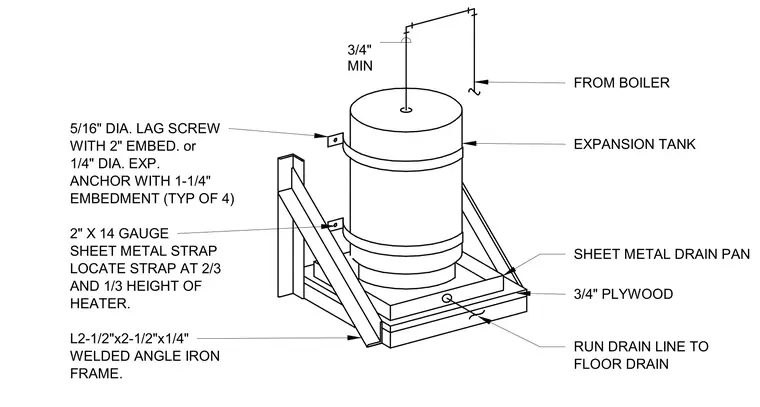

An expansion tank connects to a boiler system and rests on a three-quarter-inch plywood base supported by a welded angle iron frame constructed from two-and-a-half by two-and-a-half by one-quarter-inch angles. The tank is secured using two-inch by fourteen-gauge sheet metal straps located at two-thirds and one-third of the height, fastened with five-sixteenth-inch diameter lag screws with two-inch embedment or one-quarter-inch diameter expansion anchors with one-quarter-inch embedment, typical of four. The assembly sits inside a sheet metal drain pan with a drain line running to the floor drain.
2" X 14 GAUGE LOCATE STRAP AT 2/3 AND 1/3 HEIGHT OF FLOOR DRAIN RUN DRAIN LINE TO SHEET METAL DRAIN PAN 5/16" DIA. LAG SCREW 1/4" DIA. EXP. WITH 2" EMBED. or 3/4" MIN SHEET METAL STRAP ANCHOR WITH 1-1/4" EMBEDMENT (TYP OF 4) HEATER. FROM BOILER EXPANSION TANK 3/4" PLYWOOD L2-1/2"x2-1/2"x1/4" FRAME. WELDED ANGLE IRON
