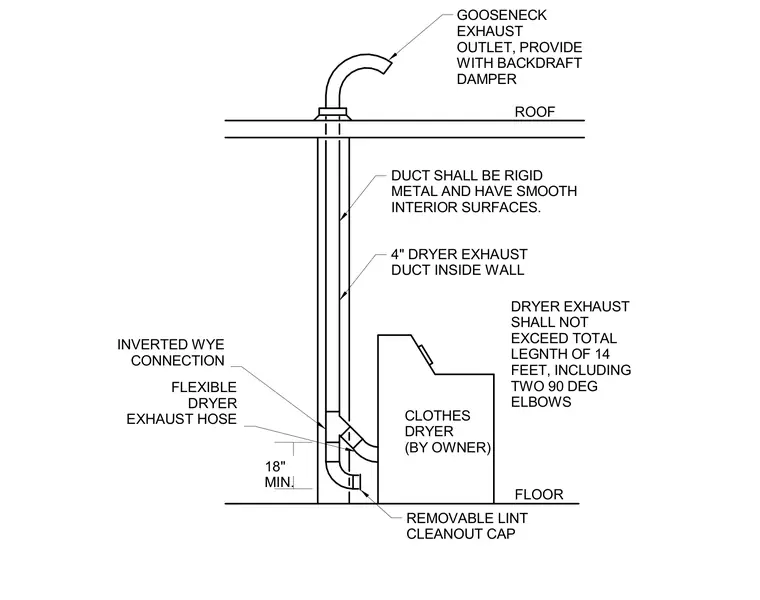

A four-inch rigid metal dryer exhaust duct routes vertically inside the wall from the floor level up through the roof assembly. A gooseneck exhaust outlet equipped with a backdraf damper penetrates the roof above. At the lower level, an owner-furnished clothes dryer connects via a flexible exhaust hose into an inverted wye connection on the main vertical duct. A removable lint cleanout cap sits at the base below an eighteen-inch minimum clearance. The total duct length must not exceed fourteen feet, including two ninety-degree elbows, and all interior surfaces must remain smooth.
FLEXIBLE DRYER EXHAUST HOSE REMOVABLE LINT CLEANOUT CAP CLOTHES DRYER (BY OWNER) 4" DRYER EXHAUST DUCT INSIDE WALL GOOSENECK EXHAUST OUTLET, PROVIDE WITH BACKDRAFT DAMPER INVERTED WYE CONNECTION 18" MIN. FLOOR ROOF DUCT SHALL BE RIGID METAL AND HAVE SMOOTH INTERIOR SURFACES. DRYER EXHAUST SHALL NOT EXCEED TOTAL LEGNTH OF 14 FEET, INCLUDING TWO 90 DEG ELBOWS
