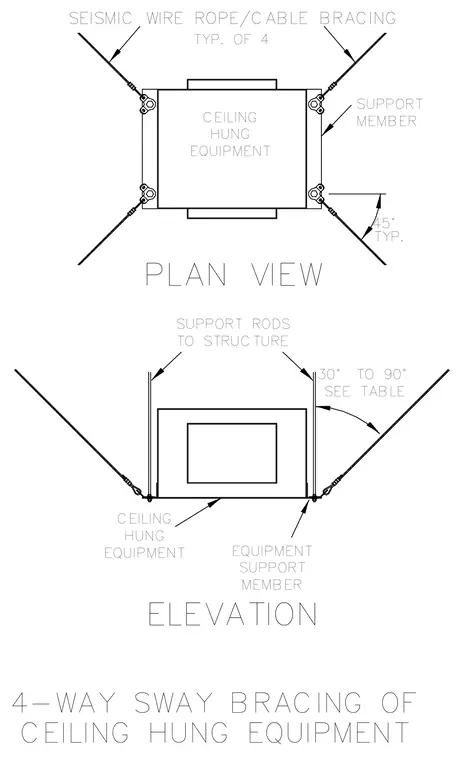

Seismic wire rope cable bracing is arranged in a four-way sway pattern around ceiling-hung equipment supported on framing members. Vertical support rods connect the equipment support member to the building structure above. The diagonal wire rope braces are oriented at a typical forty-five-degree angle in plan view. The vertical angle of the sway cables ranges from thirty to ninety degrees per project tables.
EQUIPMENT SEISMIC WIRE ROPE/CABLE BRACING 4-WAY SWAY BRACING OF CEILING HUNG EQUIPMENT PLAN VIEW EQUIPMENT ELEVATION SUPPORT MEMBER HUNG CEILING TO STRUCTURE SUPPORT RODS SEE TABLE 30° TO 90° EQUIPMENT TYP. OF 4 CEILING HUNG TYP. 45° MEMBER SUPPORT
