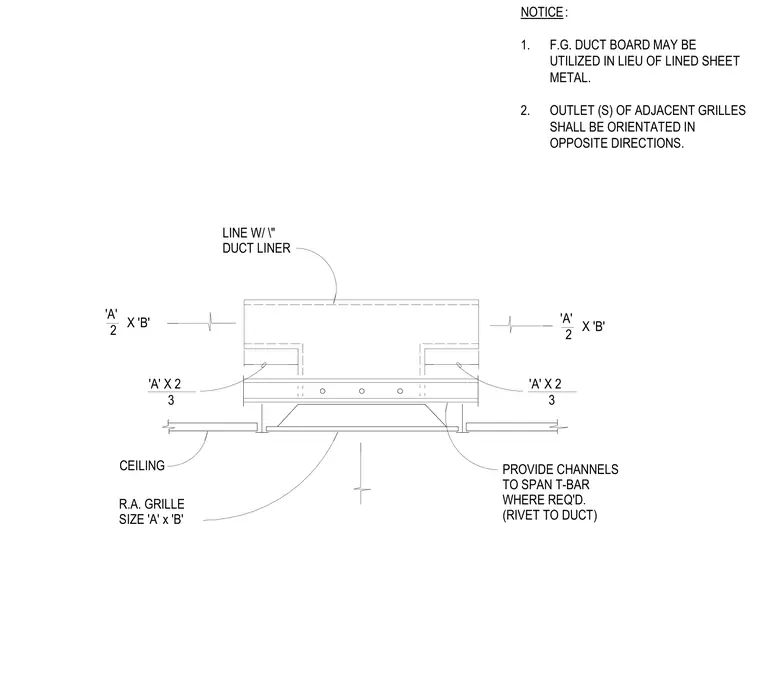

A return air grille of specified size is integrated into a suspended ceiling system. The duct connection utilizes a sound boot lined with fiberglass duct liner or constructed from fiberglass duct board as permitted by project notes. Channels are provided to span the ceiling T-bar grid where required and are riveted directly to the duct assembly.
'A' 2 X 'B' 3 PROVIDE CHANNELS TO SPAN T-BAR WHERE REQ'D. (RIVET TO DUCT) 'A' X 2 DUCT LINER LINE W/ \" 'A' 2 X 'B' 3 SIZE 'A' x 'B' R.A. GRILLE CEILING 'A' X 2 NOTICE: 1. F.G. DUCT BOARD MAY BE UTILIZED IN LIEU OF LINED SHEET METAL. 2. OUTLET (S) OF ADJACENT GRILLES SHALL BE ORIENTATED IN OPPOSITE DIRECTIONS.
