A flexible duct connects the supply air source to a plenum with acoustical lining, incorporating an inline volume damper for airflow control. The flexible duct has a maximum length of five feet and is secured with stainless steel flexible duct clamps over the duct jacket insulation at each collar connection. A bead on the duct collar prevents the flexible duct from slipping off. The plenum connects directly to a linear diffuser flush with the ceiling plane. Duct hangers support the ductwork from the overhead structure, while a seismic strap provides lateral bracing for the diffuser assembly.

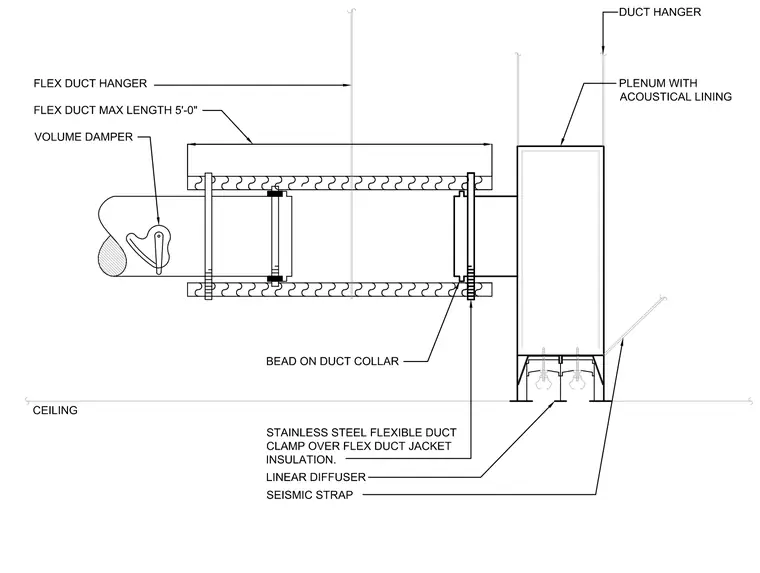

VOLUME DAMPER CEILING STAINLESS STEEL FLEXIBLE DUCT CLAMP OVER FLEX DUCT JACKET INSULATION. LINEAR DIFFUSER BEAD ON DUCT COLLAR FLEX DUCT MAX LENGTH 5'-0" FLEX DUCT HANGER PLENUM WITH ACOUSTICAL LINING SEISMIC STRAP DUCT HANGER
