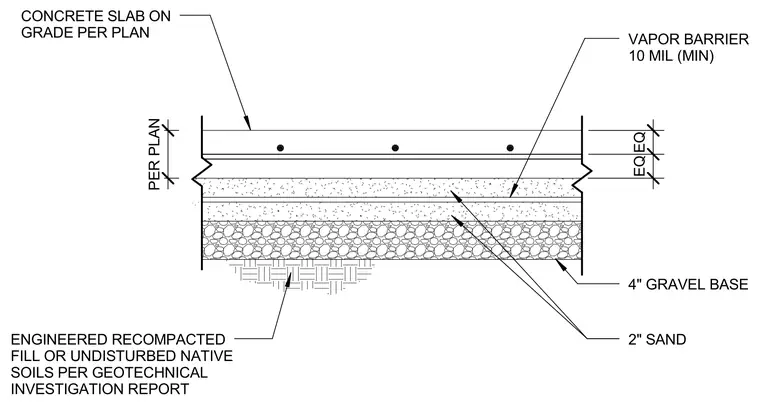

An interior concrete slab on grade is supported by engineered recompacted fill or undisturbed native soils per the geotechnical investigation report. A four-inch gravel base per plan rests directly on the subgrade, overlaid by a two-inch sand layer. A ten-mil minimum vapor barrier separates the sand layer from the concrete slab on grade above, which is dimensioned per plan.
ENGINEERED RECOMPACTED FILL OR UNDISTURBED NATIVE SOILS PER GEOTECHNICAL INVESTIGATION REPORT CONCRETE SLAB ON GRADE PER PLAN VAPOR BARRIER 10 MIL (MIN) 4" GRAVEL BASE PER PLAN EQ EQ 2" SAND
