Pressure Gauge Installation

About this detail

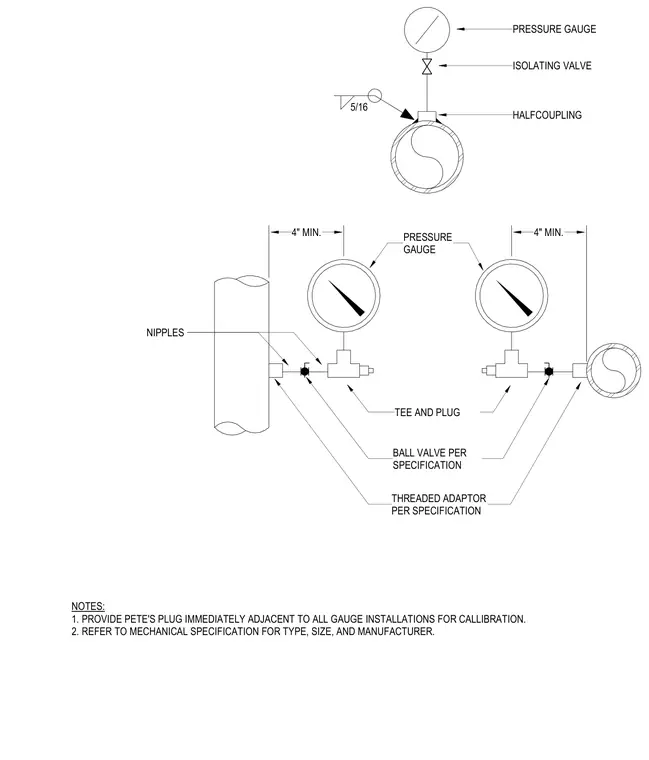

A pressure gauge is connected to piping via a threaded adaptor per specification, followed by a ball valve, a tee and plug with nipples maintaining a four inch minimum clearance, an isolating valve, and the pressure gauge itself. A half-coupling welded to the pipe with a five-sixteenths weld accommodates the gauge mounting branch. A Pete's plug must be provided immediately adjacent to all gauge installations for calibration per project notes.
