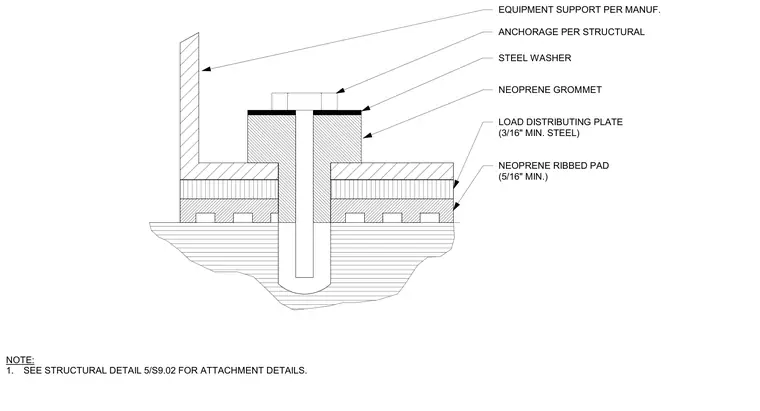

Equipment support connects via an anchor bolt with a steel washer and neoprene grommet bearing on a three-sixteenths-inch minimum steel load distributing plate. A five-sixteenths-inch minimum neoprene ribbed pad isolates the support from the underlying structure. Attachment details refer to structural detail 5/S9.02.
EQUIPMENT SUPPORT PER MANUF. ANCHORAGE PER STRUCTURAL STEEL WASHER NEOPRENE GROMMET LOAD DISTRIBUTING PLATE (3/16" MIN. STEEL) NEOPRENE RIBBED PAD (5/16" MIN.) NOTE: 1. SEE STRUCTURAL DETAIL 5/S9.02 FOR ATTACHMENT DETAILS.
