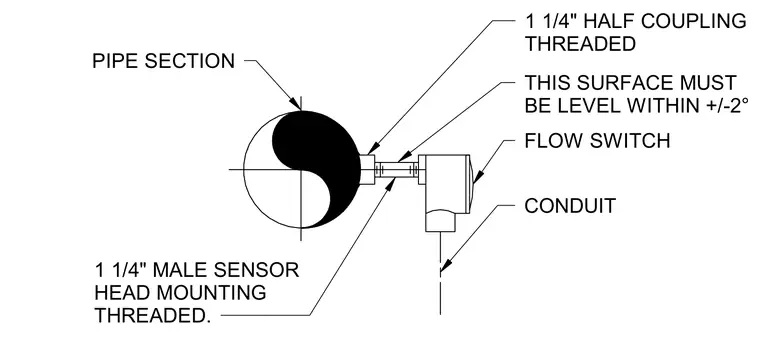

A flow switch sensor head mounts into a one-and-one-quarter-inch threaded half coupling welded to the pipe section. The male sensor head threads directly into the coupling, and a conduit connects to the underside of the switch housing. The mounting surface must be level within plus or minus two degrees for proper operation.
PIPE SECTION 1 1/4" HALF COUPLING THREADED FLOW SWITCH CONDUIT 1 1/4" MALE SENSOR HEAD MOUNTING THREADED. THIS SURFACE MUST BE LEVEL WITHIN +/-2°
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
