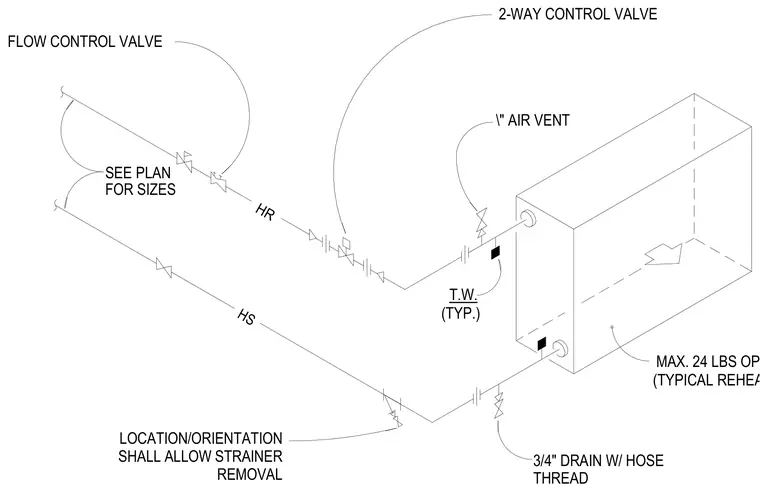

The piping assembly connects heating supply and heating return lines to a reheat coil unit sized per plan. The supply line includes a flow control valve and an inline strainer positioned to allow easy removal. The return line incorporates a two-way control valve, an air vent, and a three-quarter-inch drain with a hose thread. The entire coil assembly has a maximum operating weight of twenty-four pounds. Pipe sizes and specific layout configurations are determined per the architectural or mechanical floor plans.
HS HR SEE PLAN (TYP.) T.W. \" AIR VENT FOR SIZES LOCATION/ORIENTATION SHALL ALLOW STRAINER REMOVAL 3/4" DRAIN W/ HOSE THREAD MAX. 24 LBS OPER. WT. (TYPICAL REHEAT COIL) 2-WAY CONTROL VALVE FLOW CONTROL VALVE
