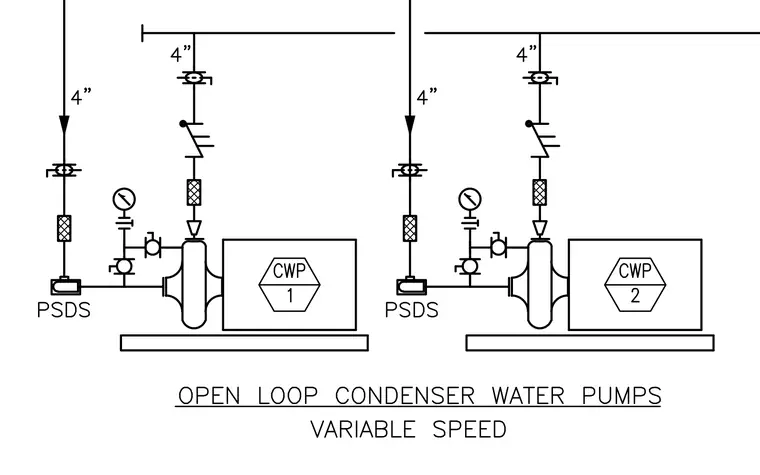

Two variable speed condenser water pumps, designated CWP 1 and CWP 2, connect to four-inch supply and discharge piping networks. Each pump assembly incorporates isolation valves, check valves, flexible connectors, pressure gauges, and pressure safety drain switches designated PSDS. The schematic indicates complete inline valving configurations and connection layouts for both parallel pump loops.
