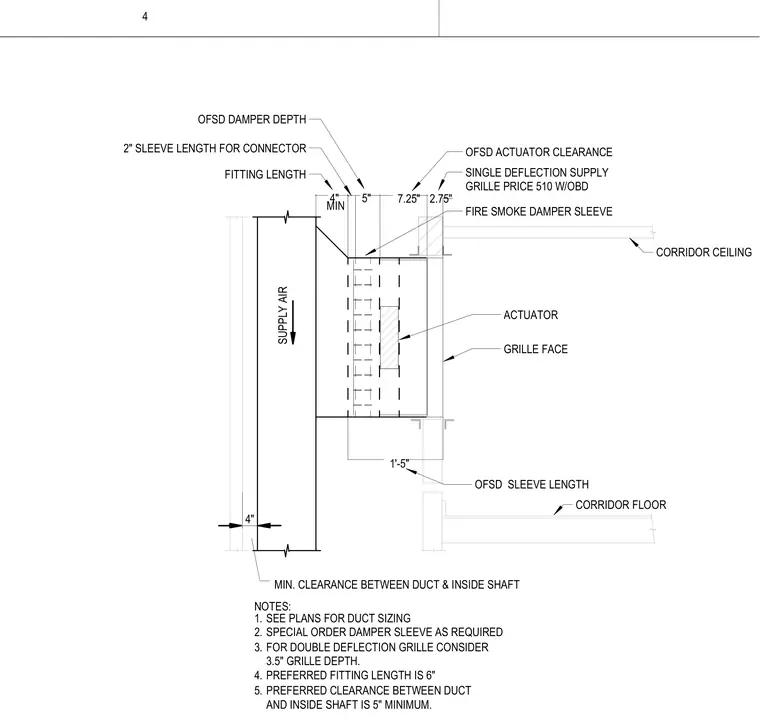

A combination fire smoke damper with an actuator penetrates a shaft wall supplying air to a corridor. A single deflection supply grille with opposed blade damper mounts to a fire smoke damper sleeve extending one foot five inches. A connector requires a two-inch sleeve length with a preferred fitting length of six inches and a damper depth of five inches. Actuator clearance requires seven and a quarter inches with an extra two and three-quarter inches for the grille face. A minimum clearance of four inches is maintained between the supply air duct and inside of the shaft wall.
CORRIDOR FLOOR SUPPLY AIR 4" MIN NOTES: 1. SEE PLANS FOR DUCT SIZING 2. SPECIAL ORDER DAMPER SLEEVE AS REQUIRED 3. FOR DOUBLE DEFLECTION GRILLE CONSIDER 3.5" GRILLE DEPTH. 4. PREFERRED FITTING LENGTH IS 6" 5. PREFERRED CLEARANCE BETWEEN DUCT AND INSIDE SHAFT IS 5" MINIMUM. CORRIDOR CEILING 5" 2.75" FITTING LENGTH OFSD DAMPER DEPTH SINGLE DEFLECTION SUPPLY GRILLE PRICE 510 W/OBD 2" SLEEVE LENGTH FOR CONNECTOR 7.25" OFSD ACTUATOR CLEARANCE 1'-5" FIRE SMOKE DAMPER SLEEVE ACTUATOR OFSD SLEEVE LENGTH GRILLE FACE MIN. CLEARANCE BETWEEN DUCT & INSIDE SHAFT 4" 4
